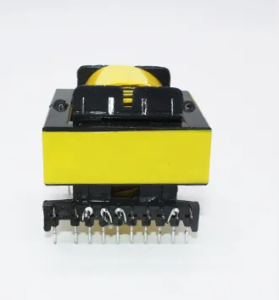

EE55 transformer is a common electronic component commonly used in power supplies and electronic devices

In the middle. Its parameters include input voltage, output voltage, rated power, operating frequency, winding ,Number of turns, winding material, insulation level, temperature rise, size and weight, etc.

  1. Working frequency: 20kHz-500KHz
  2. Output power: 80 to 2000 W
  3. Working temperature: -40℃ to +125℃
  4. Storage temperature: -25℃ to +85℃
  5. Storage humidity: 30 to 95%

The characteristics:

The characteristics of EE55 transformer mainly include the following aspects:

Operating frequency range: The operating frequency range of EE55 high-frequency transformer is 20kHz to 500kHz, suitable for high-frequency applications.

Output power: The EE55 transformer has a wide range of output power, ranging from 80W to 2000W, suitable for applications with different power requirements.

Working temperature and storage temperature: The working temperature range is -40 ℃ to+125 ℃, the storage temperature range is -25 ℃ to+85 ℃, and the storage humidity is 30% to 95%.

Materials and Design: EE55 transformer has the characteristics of large window area and easy winding, high reliability, and is suitable for various switching power supplies and inverters and other equipment

Product Show
Type Structure type Dimension(mm) Pin Row1(mm) Pin Row2(mm) Row Pitch OD Pin(mm) Note
A B C Pin Pin Pitch Pin Pin Pitch
EE19-001 Vertival 19.5 14 16 3 5.00 3 5.00 11 ∅0.7
EE19-002 Vertival 22 16 19 5 4.00 5 4.00 10 ∅0.8
EE19-003 Vertival 19.5 14 16 2 8.00 2 8.00 9.6 ∅0.7
EE19-004 Vertival 19.5 14 17 4 4.00 3 4.00 11 ∅0.7
EE19-005 Vertival 19.5 15.7 19 6 2.70 4 3.50 12.1 ∅0.6
EE19-006 Horizontal 19.5 16.3 12.5 4 4.78 4 4.78 12.75 ∅0.7
EE19-007 Horizontal 19.5 17.3 12.5 5 3.00 5 3.00 12.5 ∅0.7
EE19-008 Horizontal 19.5 17.4 11.1 6 2.50 4 2.5/7.5 14.2 SQ0.4*0.6 4 slot
EE19-009 Horizontal 19.5 16 14.8 4 4.75 4 4.75 12.5 ∅0.7 2 slot
EE20-001 Vertival 21 16 21 3 5.00 3 5.00 12.5 ∅0.7
EE22-001 Vertival 23 16 23 5 4.00 5 4.00 10 ∅0.8
EE22-002 Horizontal 23 16 13.2 4 4.25/4.8 4 4.25/4.8 13 ∅0.7
EE22-003 Horizontal 23 22.5 20.5 5 4.00 4 5.00 17 ∅0.6
EE25-001 Vertival 26 17.2 22 4 5.00 4 5.00 12 ∅0.8
EE25-002 Vertival 26 20.5 22 5 5.00 5 5.00 15 ∅0.8
EE25-003 Vertival 26 25 15.6 5 5.0/6.0 5 5.0/6.0 22 SQ0.64*0.64
EE25-004 Horizontal 26 20.5 17.5 4 4.00 4 4.00 15 ∅0.8
EE25-005 Horizontal 26.3 27.5 25 4 5.00 4 5.00 20 ∅0.8 2 slot
EE28-001 Vertival 29 22 21 5 5.0 5 5 17.5 ∅0.8
EE30-001 Vertival 31 22 27 5 5.0 5 5 17.5 ∅0.8
EE33-001 Vertival 34 29 32 6 5.0 6 5 22.7 ∅0.8
EE40-001 Vertival 41 28 34 6 5.0 6 5 22.6 ∅0.8
EE40-002 Horizontal 41 32 28.5 7 5.0 7 5 25.8 ∅0.8
EE42-001 Vertival 43 39 44 6 5.0 6 5 32.2 ∅1.0
EE42-002 Horizontal 43 40 36.5 8 5.0 8 5 35 ∅1.0
EE42-003 Horizontal 43 44 39 8 5.0 8 5 35.5 ∅1.0
EE55-001 Horizontal 56 56 48 7 5.0 7 5 40 ∅1.0
EE55-002 Horizontal 56 56 54 10 5.0 10 5 45 ∅1.0
EE65-001 Vertival 66 55 65 10 5.0/8.0 6 5.0/24.5 45.5 ∅1.3
